Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 48 VDC Cooling Fan
Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 48 VDC Cooling Fan Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 48 VDC Cooling Fan
$264.99
Product Information
Part Number: NF141206VFD4
Inventory: Typically Ships 2-4 Business Days
  • Description
  • 48 VDC Powered Fan Cooled NEMA Enclosure

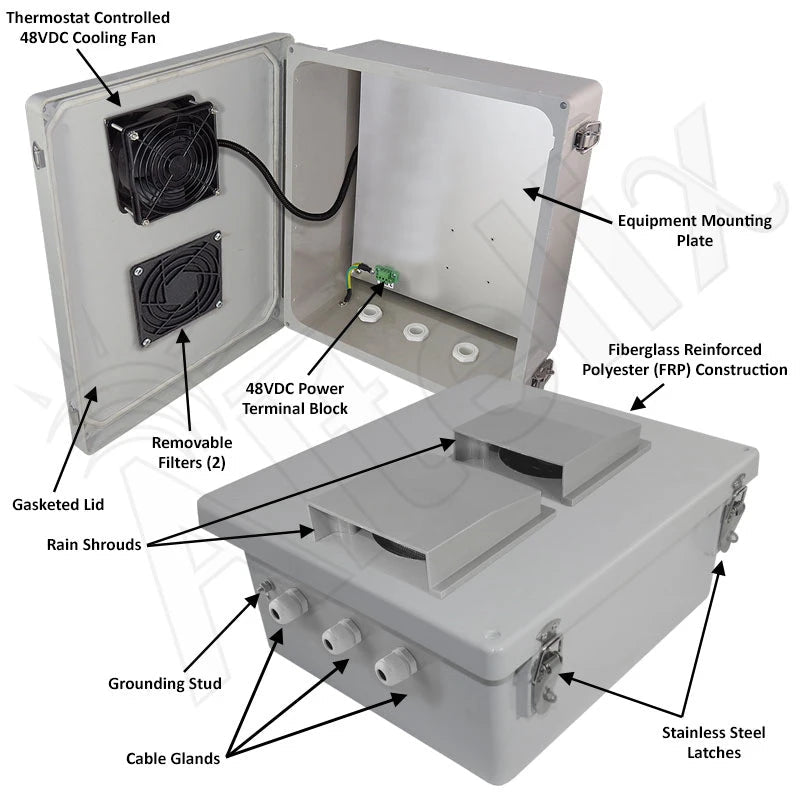

    The Altelix NF141206VFD4 features two 4" vents and a 48VDC thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.

    This enclosure can be powered from 48VDC solar and battery power sources, and features a terminal block for easy wiring.

    Extreme Protection Built to Last
    This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

    Cable Glands
    The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

    Terminal Block
    This enclosure features our top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

    Mounting
    Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

    Optional SLA Battery Shelf
    The NHP-SLA-01 is an aluminum shelf designed for use with SLA type batteries. The shelf can be easily installed via (4) pre-tapped holes provided on the equipment mounting plate. The included strap secures the battery firmly on the shelf.

    Customization
    We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
