Altelix 10x8x8 Fiberglass Weatherproof NEMA 4X Enclosure with Aluminum Equipment Mounting Plate & 120 VAC Outlets

• Features (2) Pre-Wired 120VAC Outlets Aluminum Equipment Mounting Plate Stainless Steel Hinge and Quick Release Latches with Padlock Hasps Extra Deep Extended Lid for Increased Equipment Clearance Fiberglass Reinforced Polyester, FRP Weatherproof, UV Stable and Highly Corrosion Resistant Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 Includes Cable Glands, 1/2" Liquid-Tight Fitting and Stainless Steel Mounting Feet RF Transparent Enclosure Pole Mounting Kit Available

  Applications Harsh Environments WiFi Enclosure RFID Reader Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Outdoor Use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment Building Automation Controls Industrial Controls Enclosure

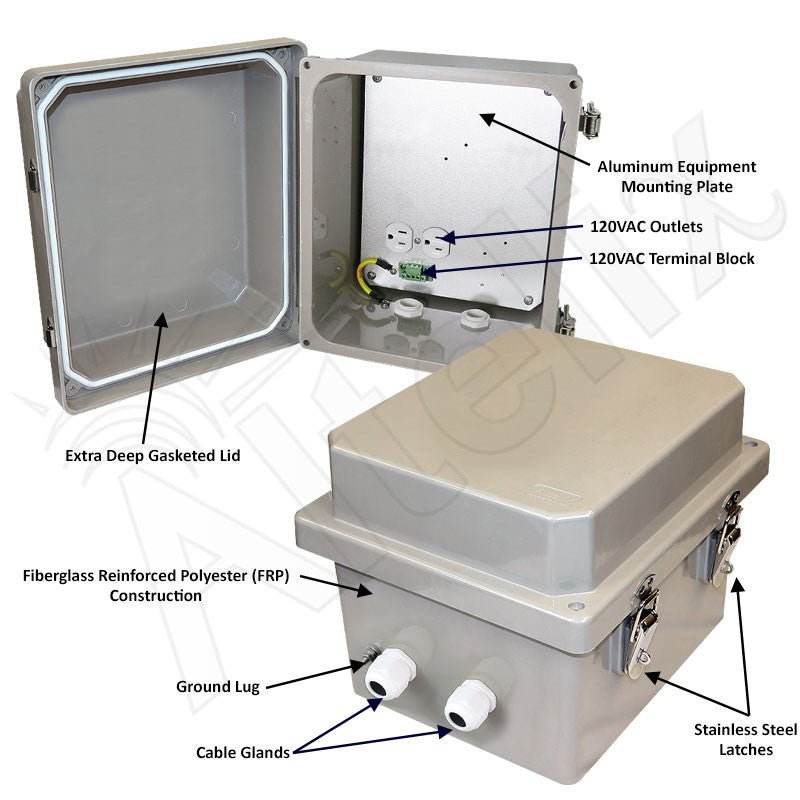

  Weatherproof Protection and 120VAC Power Outlets

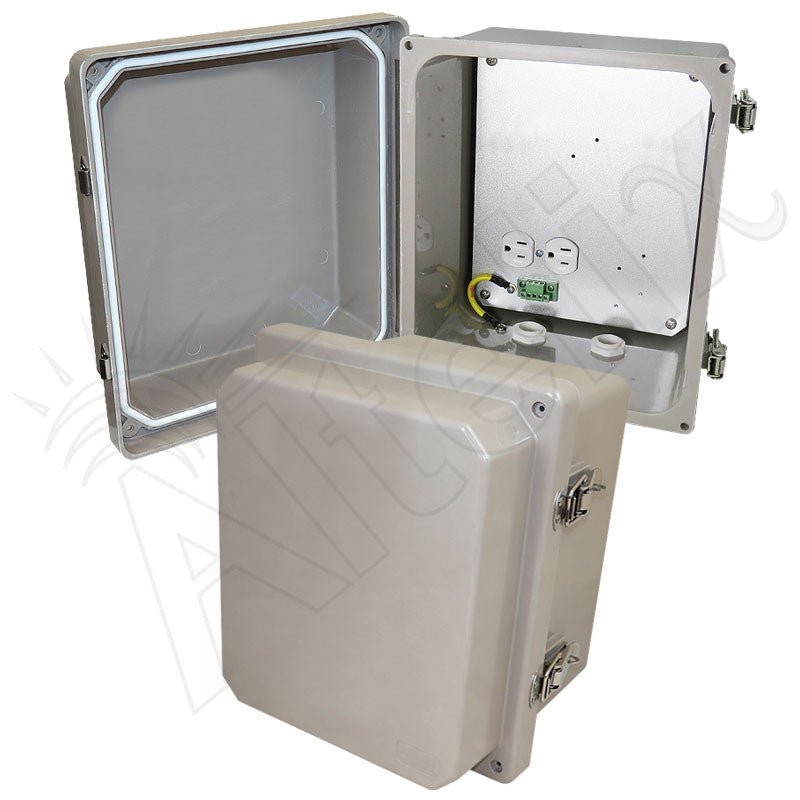

  The Altelix NF100808A1 NEMA 4X Weatherproof Enclosure features two pre-wired 120VAC power outlets and our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws. The finished aluminum equipment mounting plate features multiple tapped holes for equipment installation and can be easily drilled by the installer for unique application requirements.

  Extreme Protection Built to Last
  This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

  Increased Interior Space

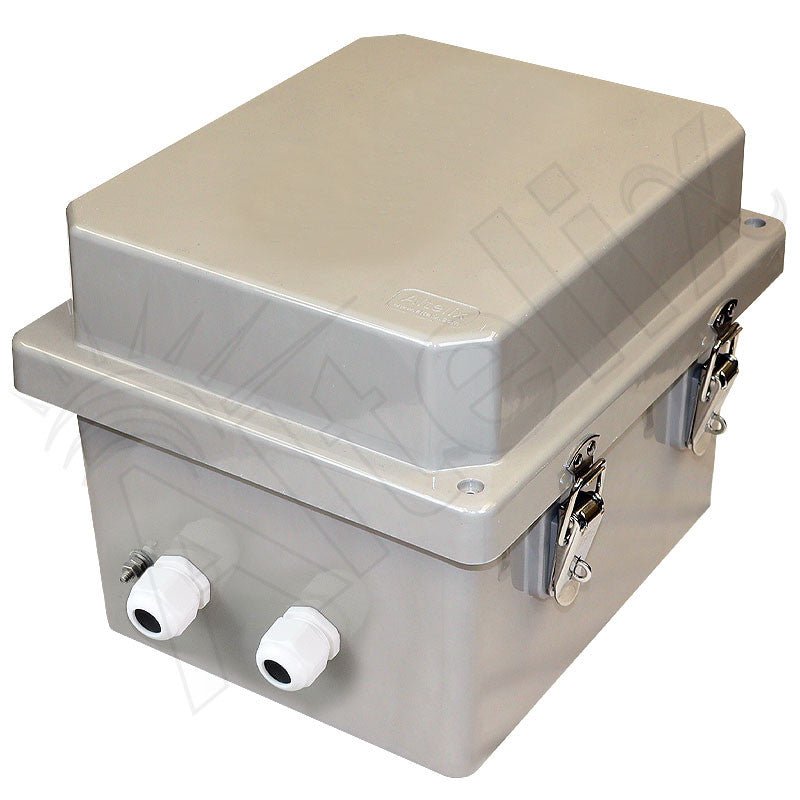

  The NF100808 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF100806 series enclosures. With the generous size of this enclosure and extended lid the NF100808 can accommodate a wide range of equipment.

  Cable Gland and Liquid-Tight Fitting
  Included with the enclosure is a unique PG-16 cable gland with a closed inner seal. They can be installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal. Also included is a 1/2" Liquid-Tight fitting for use with Liquid-Tight conduit.

  Mounting

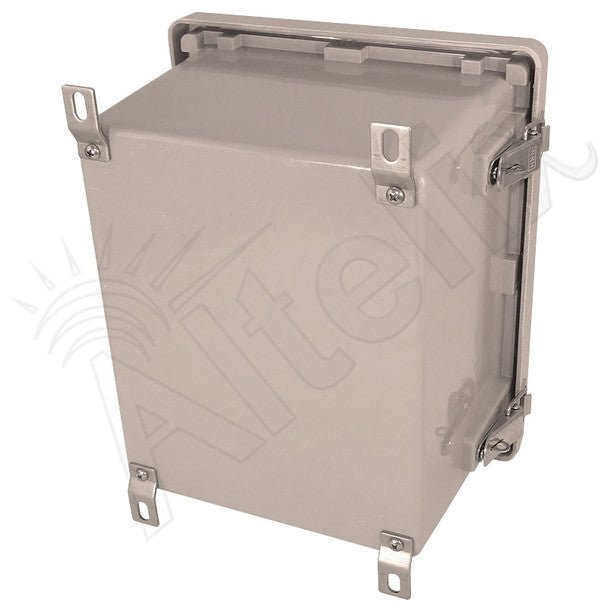

  Stainless steel brackets are included for secure wall mounting.





• 1
• 2
• 4
• 4X
• 12
• 13
