Altelix 20x16x12 Industrial DIN Rail NEMA 4X Steel Weatherproof Enclosure

• Features Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction Includes (3) 35mm Top Hat DIN Rails and DIN Rail Mounting System with 15 Positions Quarter-Turn Door Latch with Key Bonus Aluminum Bottle Opener Key Now Included! Epoxy polyester textured light gray powder coat finish NEMA Type 4, 4X / IP66 Rated

  Applications DIN Rail Mount Equipment Industrial Controls Building Automation Agricultural Controls Environmental Monitoring Stations SCADA Remote Terminal DIN Mount Power Relays and Terminals Security & Surveillance Equipment Access Controls Protection of Equipment from Theft or Damage

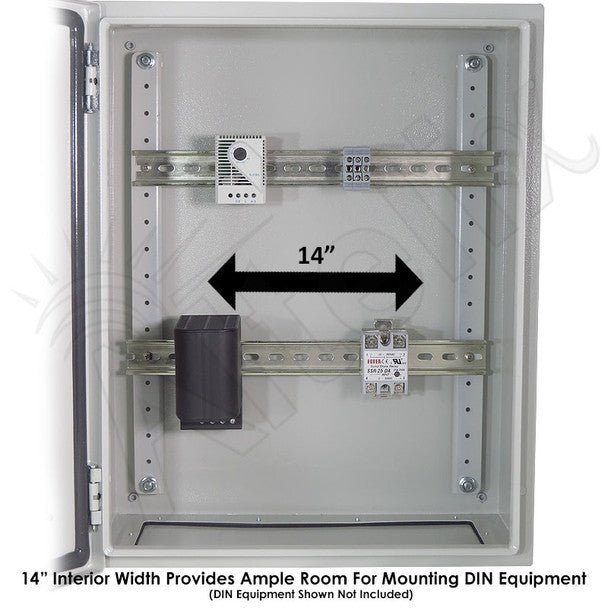

  The Altelix NS201612-DIN Steel NEMA 4X Weatherproof Industrial DIN Rail Enclosure is ideal for protecting DIN rail mounted equipment from harsh environments and tampering. The outside dimensions are 19.7 x 15.8 x 11.8 inches (500 x 400 x 300 mm) and the usable interior dimensions are 15.9 x 12.0 x 10.2 inches (405 x 306 x 259 mm).

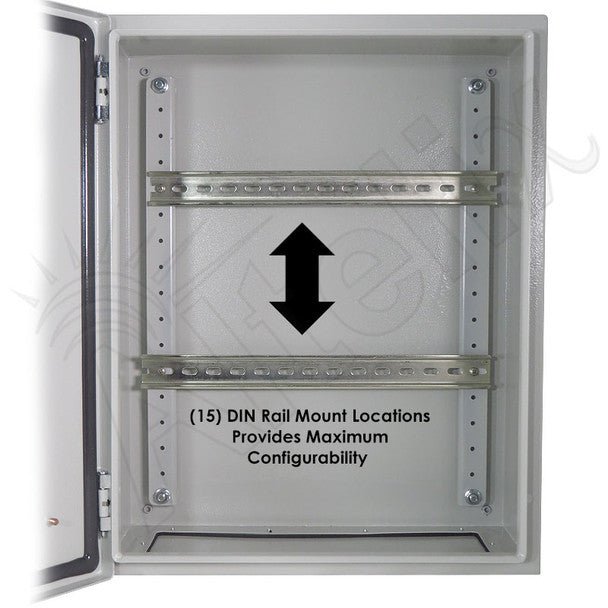

  DIN Mounting Rails
  Included with this enclosure are (2) DIN Mounting Rails. These rails mount to the interior of enclosure and are designed for use with (3) 35mm top hat DIN rails included with the enclosure. This versatile DIN rail mounting system runs the full length of the enclosure from top to bottom. This allows the Top Hat DIN rails to be mounted easily in any of 15 locations providing the flexibility needed when configuring the enclosure for specific user requirements. Hardware for mounting the Top Hat DIN rails is included.

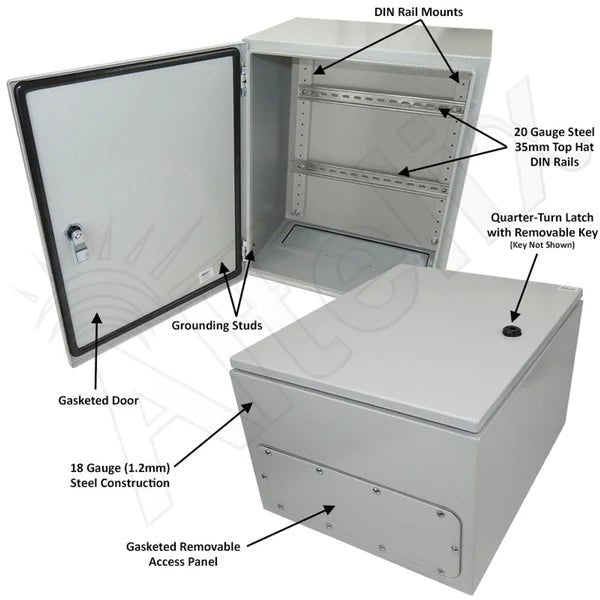

  Construction and Features
  This rugged IP66 rated enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and a quarter-turn latch to secure the enclosure. Internal grounding studs are provided on both the door and enclosure. A removable access panel is provided and is fully gasketed to ensure proper seal.

  Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

  Bonus Aluminum Bottle Opener Key
  This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

  Mounting
  Mounting holes are provided inside the enclosure for mounting to a wall or other structure.

•




• 4
• 4X
