Altelix 24x20x12 Steel Weatherproof NEMA Enclosure with Dual Cooling Fans, 120 VAC Outlets and Power CordAltelix

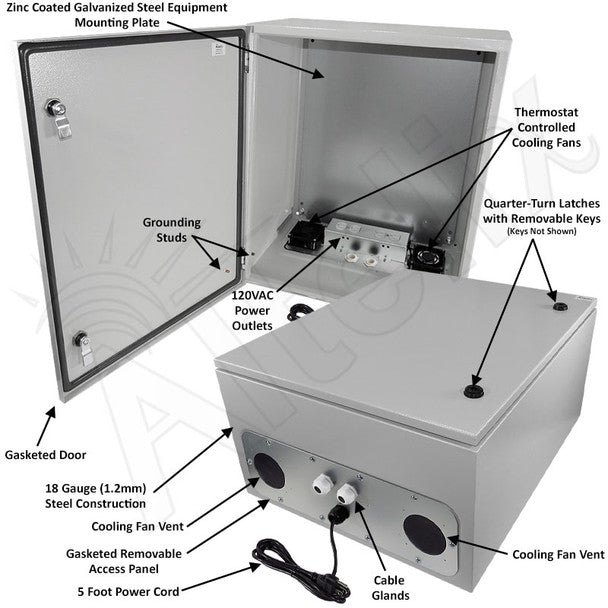

Construction and Features
This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $7.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

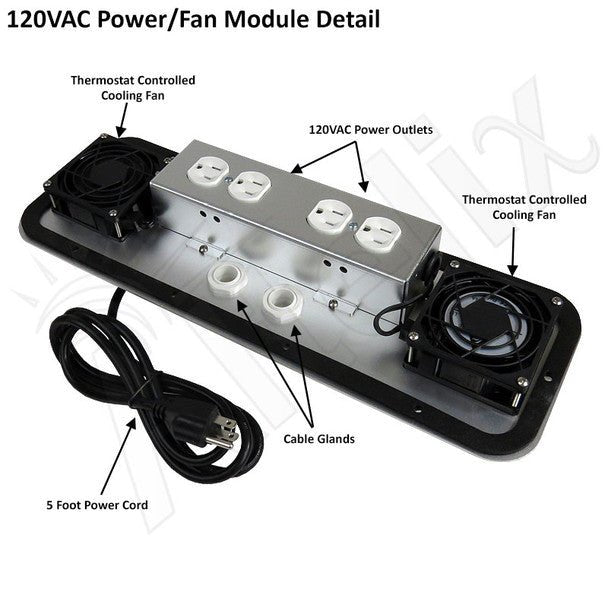

Removable Power and Fan Module

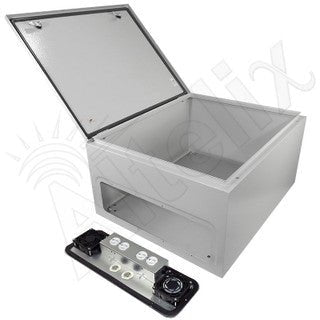

The NS242012VFA1C features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.
This enclosure is also available with 120VAC 20A outlets and a 5 foot power cord and with 20A 3-prong plug. See NS242012VFA1C.
Dual Cooling Fans Ventilation
This enclosure features dual 3" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans helps maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use.
Installation Note: The max. depth of the 4U rack is 16" (406mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).
Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
Material Continuous Seam Welded 18 Gauge (1.2mm) Steel Color Light Gray (RAL 7035) Voltage 120VAC Max Load 10A @ 120VAC Cooling Fans Turn-On Temperature 100°F (38°C) Cooling Fans Turn-Off Temperature 79°F (26°C) Exterior Dimensions
(Height x Width x Depth)
23.6 x 23.6 x 11.8 Inches
(600 x 600 x 300 mm)
(Height x Width x Depth)
18.0 x 20.0 x 10.3 Inches
(457 x 508 x 260 mm)
Rack Frame 19" Width 4U Vertical Mount Equipment Plate Material 18 Gauge (1.2mm) Zinc Coated Galvanized Steel Equipment Plate Dimensions 22.2 x 21.6 In. (565 x 550 mm) Weight 47.1 lbs. (21.4 kg) Power Cord Length 5 Feet (1.5m) Ratings NEMA Type 3R, 3RX / IP24
