Altelix 24x24x16 Industrial DIN Rail Steel Weatherproof NEMA Enclosure with Dual Cooling Fans, 120 VAC Outlets and Power Cord
Altelix 24x24x16 Industrial DIN Rail Steel Weatherproof NEMA Enclosure with Dual Cooling Fans, 120 VAC Outlets and Power Cord Altelix 24x24x16 Industrial DIN Rail Steel Weatherproof NEMA Enclosure with Dual Cooling Fans, 120 VAC Outlets and Power Cord
$829.99
Product Information
Part Number: NS242416VFA1C-DIN
Inventory: Typically Ships 2-4 Business Days
  • Description

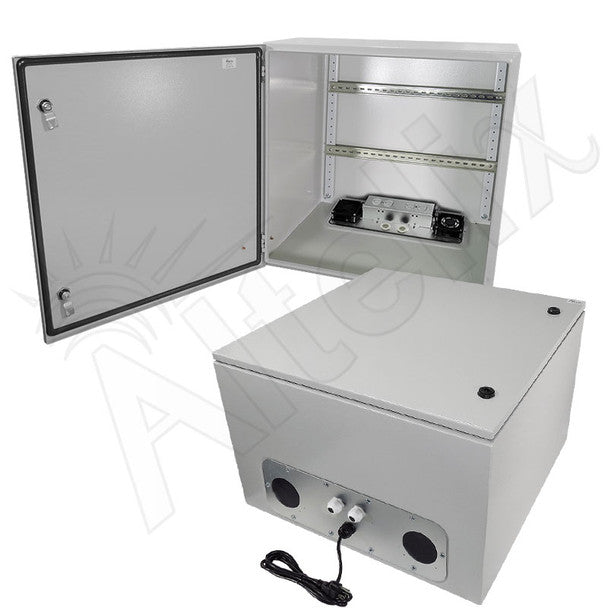

  • The Altelix NS242416VFA1C-DIN Steel Fan Cooled Weatherproof Industrial DIN Rail NEMA Enclosure with 120VAC Power and Equipment Plate is ideal for protecting DIN rail mounted equipment from harsh environments and tampering. The outside dimensions are 23.6 x 23.6 x 15.7 inches (600 x 600 x 400 mm) and the usable interior dimensions are 20.0 x 20.0 x 14.1 inches (508 x 508 x 358 mm).

    Construction and Features

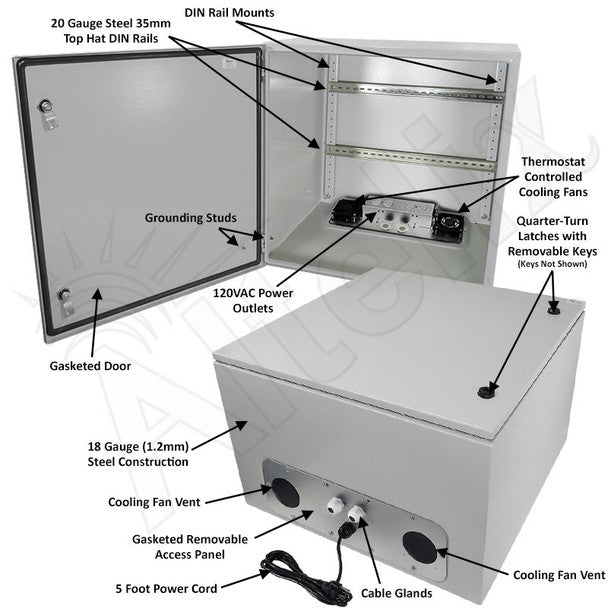

    This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure.

    Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

    Bonus Aluminum Bottle Opener Key
    This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $7.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

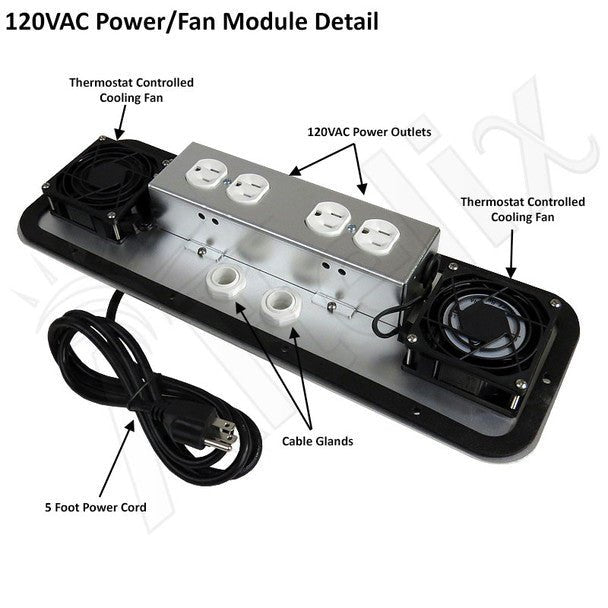

    Removable Power and Fan Module

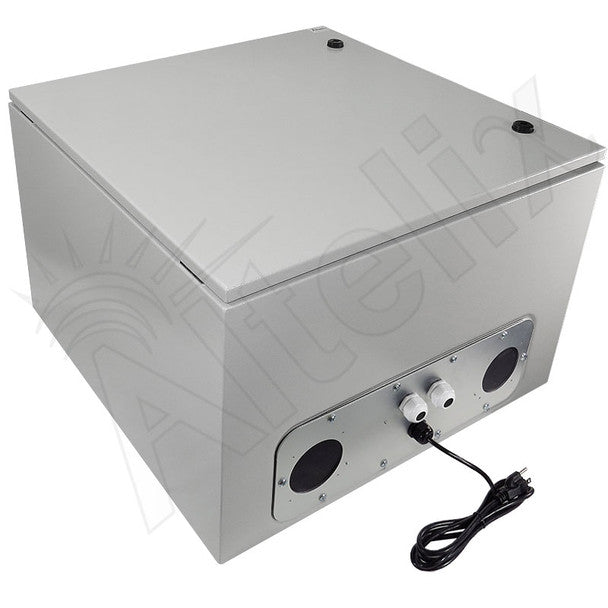

    The NS242416VFA1C-DIN features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.

    Dual Cooling Fans Ventilation
    This enclosure features dual 3" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them available for internal equipment use.

    This enclosure is also available with a lower fan turn-on temperature of 85°F (30°C). See NS242416VFA1C-DIN-85.

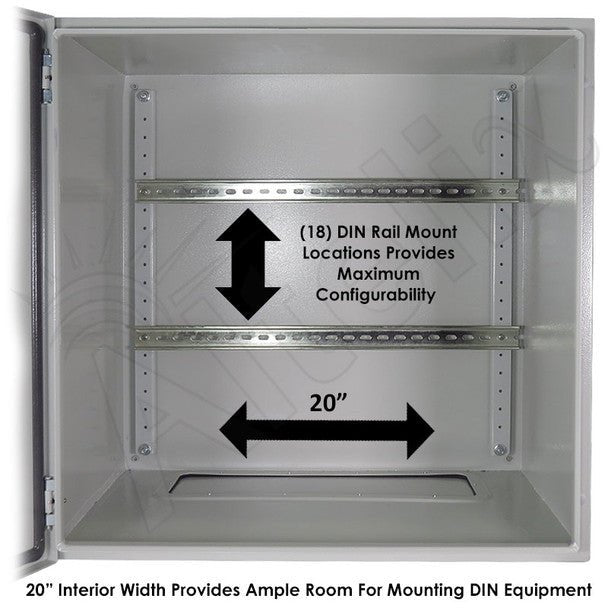

    DIN Mounting Rails
    Included with this enclosure are (2) DIN Mounting Rails. These rails mount to the interior of enclosure and are designed for use with (3) 35mm top hat DIN rails included with the enclosure. This versatile DIN rail mounting system runs the full length of the enclosure from top to bottom. This allows the Top Hat DIN rails to be mounted easily in any of 18 locations providing the flexibility needed when configuring the enclosure for specific user requirements. Hardware for mounting the Top Hat DIN rails is included.

    Cable Glands
    The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

    Mounting
    Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).

    Optional Lockable Latches
    For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
