Altelix 32x24x12 Vented Fiberglass Weatherproof NEMA Enclosure with Dual 48 VDC Cooling Fans
Altelix 32x24x12 Vented Fiberglass Weatherproof NEMA Enclosure with Dual 48 VDC Cooling Fans Altelix 32x24x12 Vented Fiberglass Weatherproof NEMA Enclosure with Dual 48 VDC Cooling Fans
$1,134.99
Product Information
Part Number: NFC322412VFD4
Inventory: Typically Ships 2-4 Business Days
  • Description
  • 48 VDC Powered Fan Cooled NEMA Enclosure

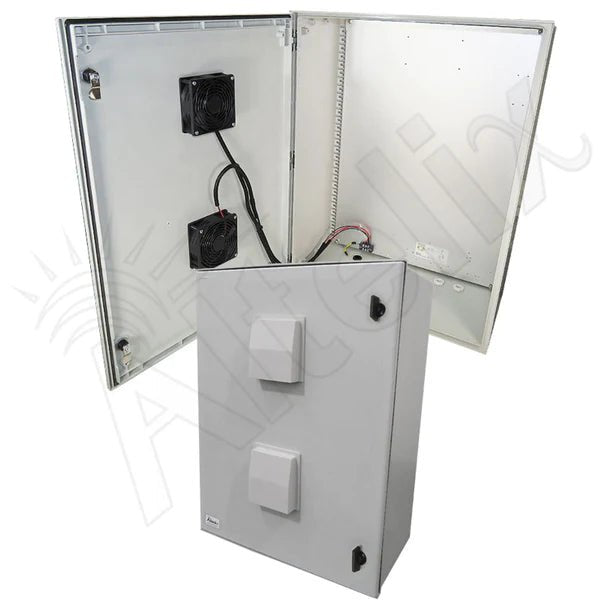

    The Altelix NFC322412VFD4 features two 4" vents and two 48VDC thermostat controlled cooling fans which help maintain lower internal temperatures. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.

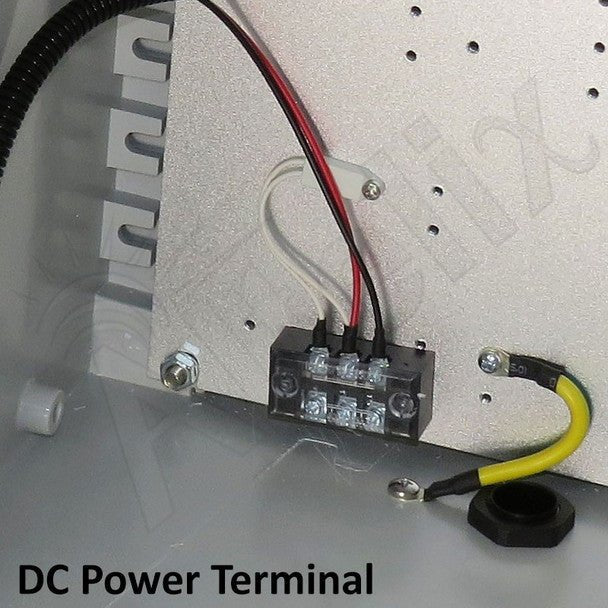

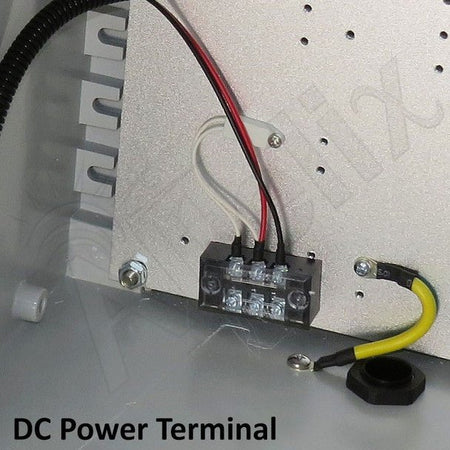

    This enclosure can be powered from 48VDC solar and battery power sources, and features a terminal strip for easy wiring.

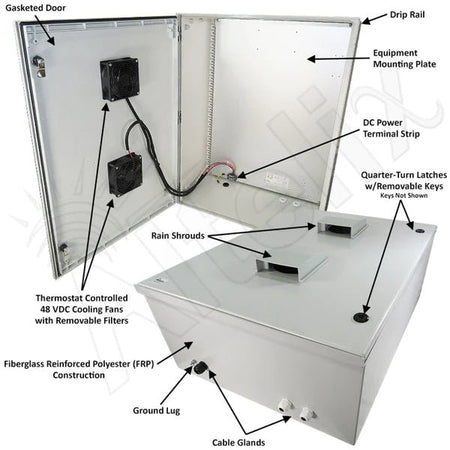

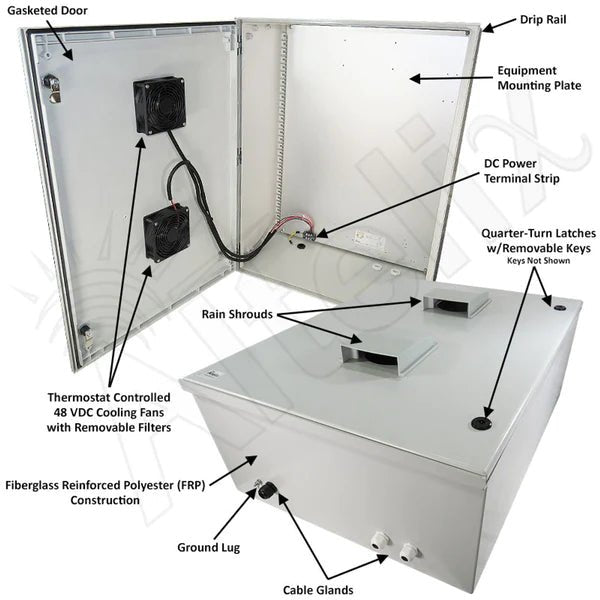

    Construction and Features
    This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

    Bonus Aluminum Bottle Opener Key
    This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

    Aluminum Equipment Plate
    This configuration consists of the fiberglass NEMA enclosure with hinged lid and a 0.11 inch (3.0 mm) thick aluminum plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

    Cable Glands
    The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

    Mounting
    Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).

    Optional Lockable Latches
    For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

    Optional SLA Battery Shelf
    The NHP-SLA-01 is an aluminum shelf designed for use with SLA type batteries. The shelf can be easily installed by drilling (4) holes in the equipment mounting plate. A drilling template is provided. The included strap secures the battery firmly on the shelf.
