Altelix 9x8x3 NEMA 4X Polycarbonate Utility Box with Aluminum Equipment Mounting Plate
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Application | Indoor, Outdoor |
| IP Equivalent | IP65, IP66 |
| Height | 9 |
| Width | 8 |
| Depth | 3 |
| Inner Dimensions | 7.0 x 5.5 x 2.2 Inches |
| Cover Type | Gasketed Cover |
| Latch Type | Padlockable Latch, Tamper proof locking screw |
| Mount Type | Wall Mount |
| Specialty Enclosure | RF Transparent WiFi Enclosure |
| Mounting Plate Included | Yes |
| Mounting Plate Material | Aluminum |
-
Features - Features a 1.5mm Thick Finished Aluminum Equipment Mounting Plate
- Includes Cable Glands, Zip Ties, Cable Management Straps and Wall Mounting Hardware
- Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
- Weatherproof and UV Stable
- Durable Polycarbonate + ABS
- RF Transparent for Wireless Devices
- Gasketed Lid
- Tamper-Proof Locking Screw with Key and Provision for Padlock
- External Dimensions: 9.3 x 8.6 x 3.0 Inches (236 x 219 x 76 mm)
- Internal Dimensions*: 7.0 x 5.5 x 2.2 Inches (178 x 140 x 57 mm)
- Optional Pole Mount Kit Available
Applications - Multi Purpose Plastic Utility Box
- Data Wiring and Fiber Optic
- Cable TV Connections
- Broadband Demarc Enclosure
- Low Voltage Wiring Junction Box
- Outdoor Speaker Wiring
- LED Controllers
- IoT Devices
- Security and Surveillance Systems
- Outdoor Weather Protection
- Protection Against Theft or Damage
- Warehouses and Public Areas
- Concealment of Equipment
Weatherproof Polycarbonate + ABS Construction For Extreme Durability

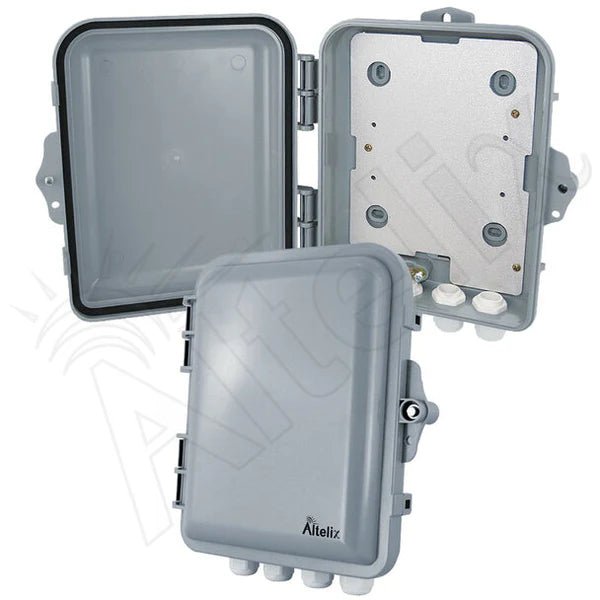

The Altelix NP090803P Plastic Utility Enclosure with Aluminum Equipment Mounting Plate is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring and small devices in harsh environments.

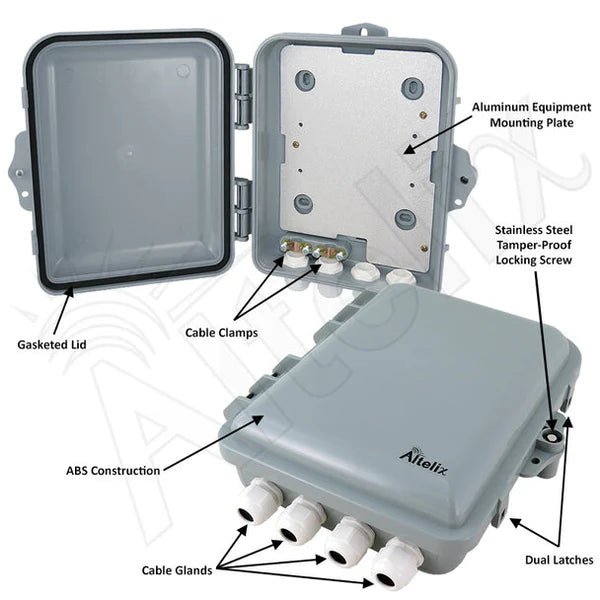

Construction and Features
This enclosure includes a 1.5mm thick finished aluminum equipment mounting plate. The enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.
Complete with Cable Glands and Wire Management Straps

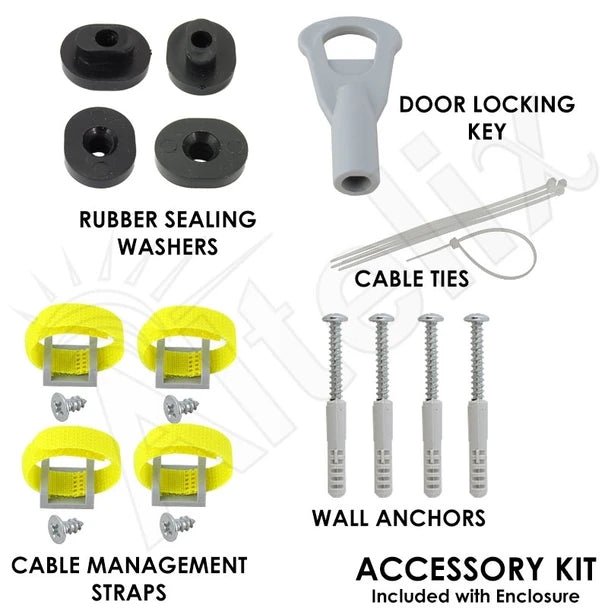

This enclosure includes 4 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
