Altelix 12x9x9 Polycarbonate + ABS NEMA 4X RF Transparent Outdoor WiFi Enclosure
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Application | Indoor, Outdoor |
| IP Equivalent | IP65, IP66 |
| Height | 12 |
| Width | 9 |
| Depth | 9 |
| Inner Dimensions | 10 x 7.1 x 7.7 inches |
| Cover Type | Hinged Cover, Opaque, Gasketed Cover |
| Latch Type | Padlockable Latch, Tamper proof locking screw |
| Mount Type | Wall Mount |
| Specialty Enclosure | RF Transparent WiFi Enclosure |
| Mounting Plate Included | No |
Features
|
Applications
|

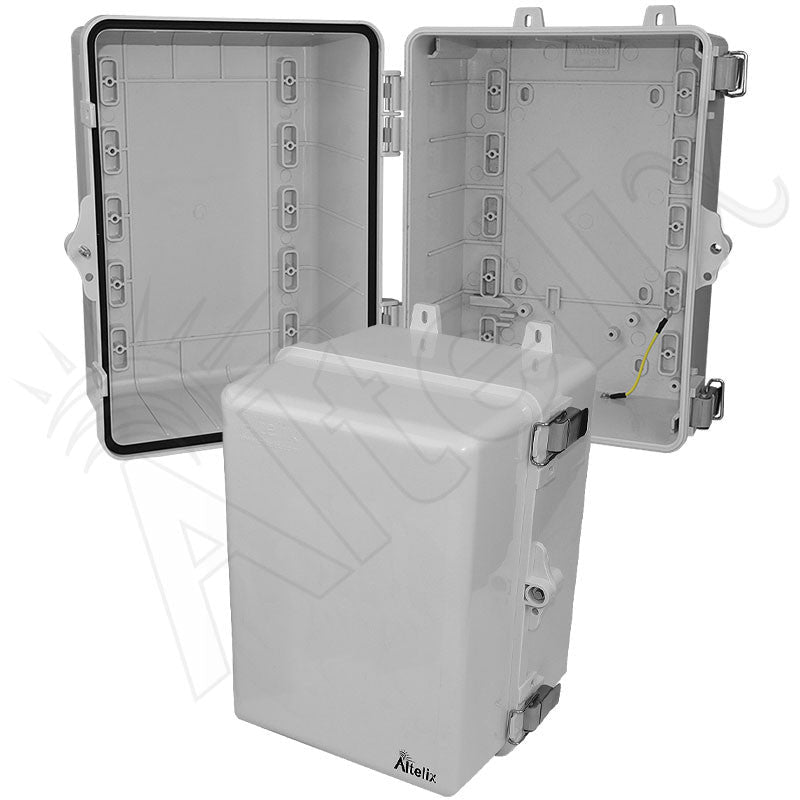

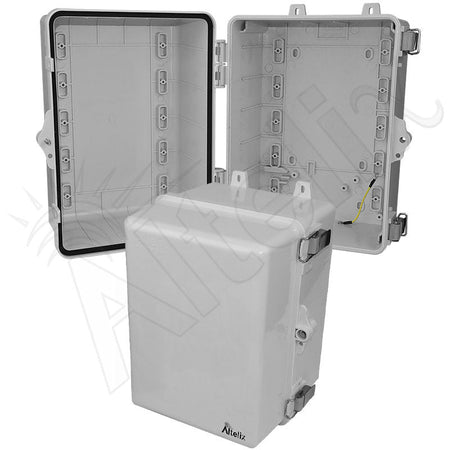

The Altelix NP120909 NEMA 4X enclosure is ideal for protecting devices from harsh environments and tampering. It features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP120909 can accommodate a wide range of equipment.

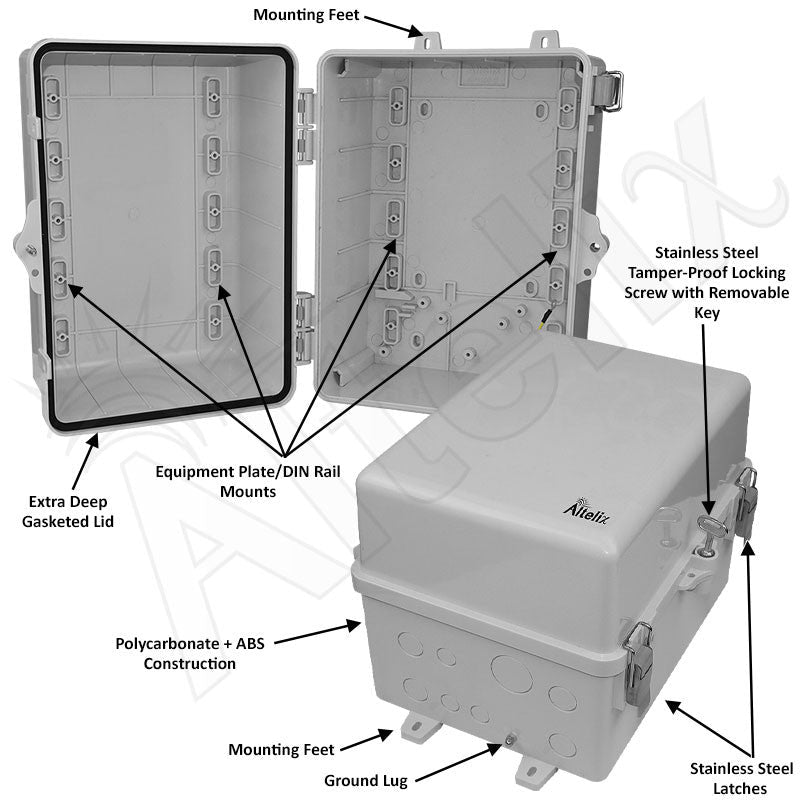

Mount Equipment in the Base and Lid

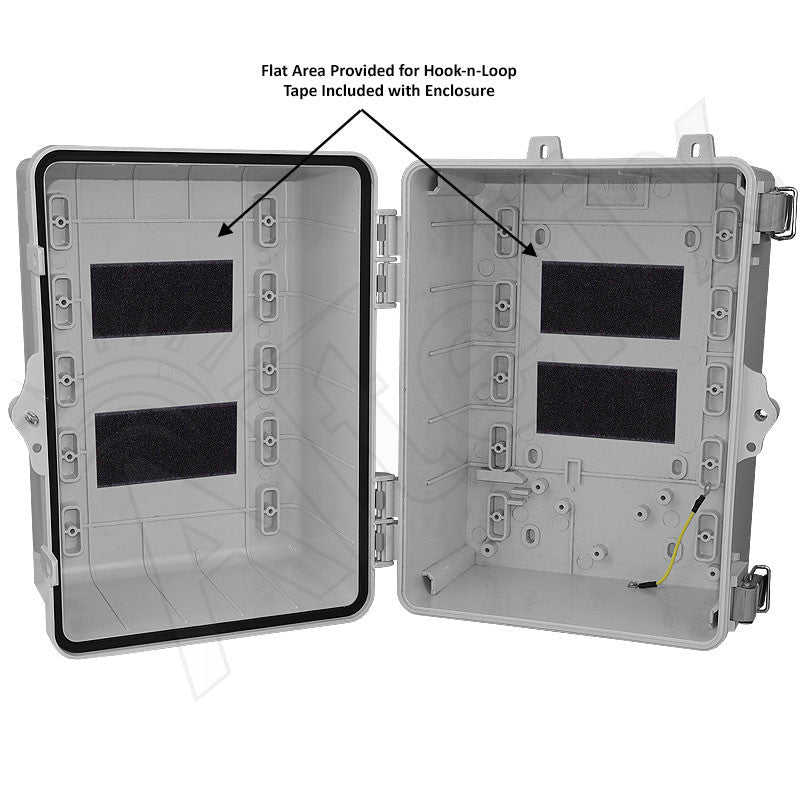

This enclosure provides multiple ways to install equipment. Raised bosses located in both the base and lid of this enclosure can be used to mount an equipment plate. These same bosses can also be used to install Altelix's 35mm Top Hat DIN Rail kits (sold separately). Up to (5) DIN Rail kits can be installed into the enclosure base and up to (5) DIN Rail kits in the lid. This provides greater versatility when mounting equipment inside the enclosure. A large flat section in both the base and lid are also provided for use with the hook-n-loop tape included in the accessory kit.
RF Transparent Design
The NP120909 is ideal for WiFi applications. The non-metallic design of the enclosure will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless access points on the market.
Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

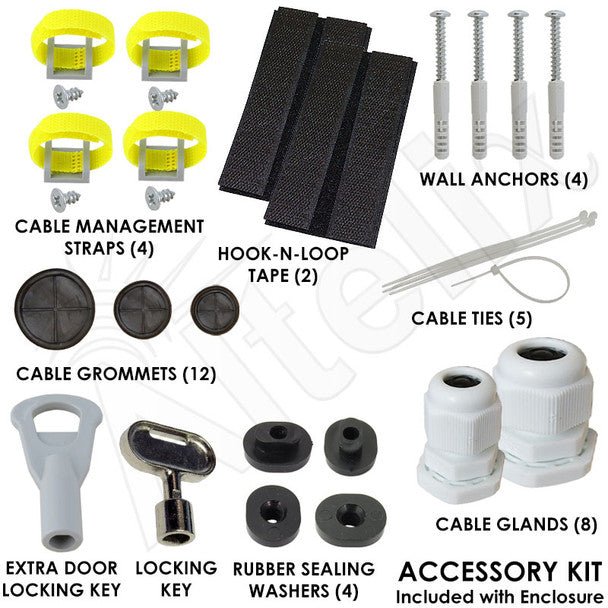

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.
Multiple Mounting Options

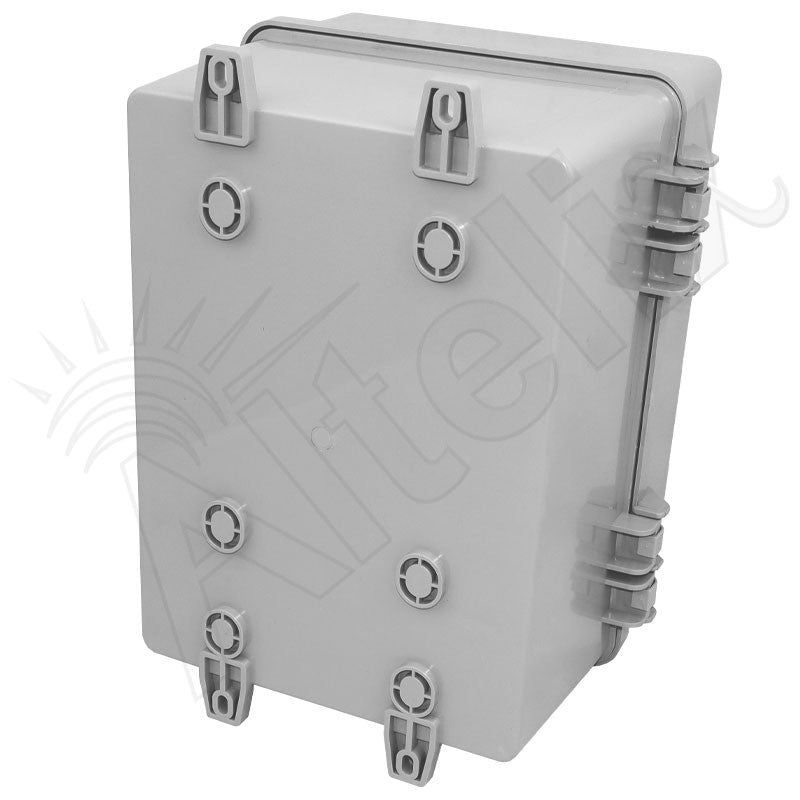

This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit.
