Home » Hammond DC4R4448 44U 4-Post Rack — 32–48 in, Square-Hole Rails

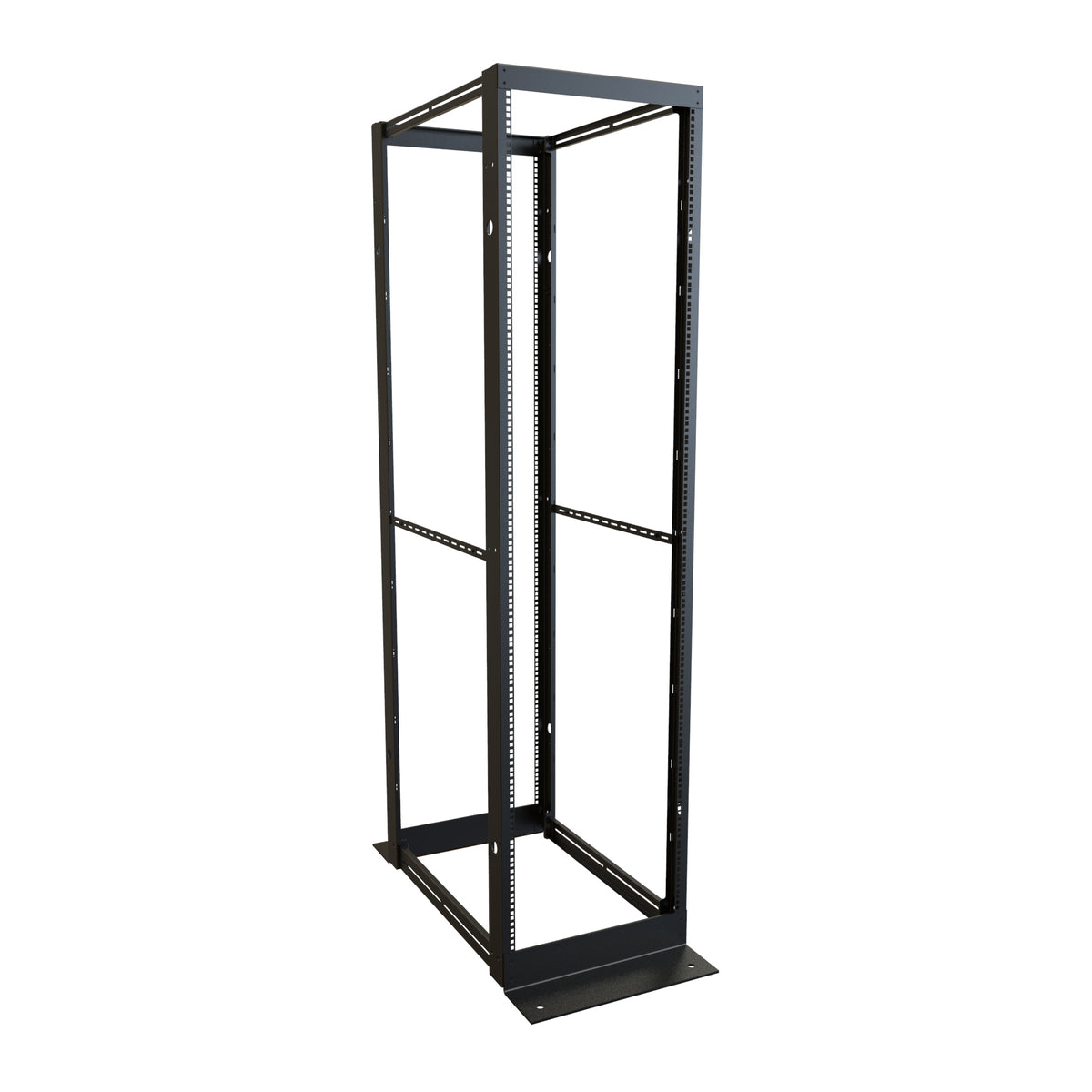

Hammond DC4R4448
Hammond DC4R4448
Hammond MFG

Hammond DC4R4448 44U 4-Post Rack — 32–48 in, Square-Hole Rails

In stock
SKU: DC4R4448
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
$931.99

Specifications

Product Type Racks & Cabinets
Material Painted Steel
Height 83.13 in
Width 20.50 in
Depth Approx. 60.00 in with feet outward
Mount Type Freestanding
Max Load 2,000 lb static
Racks Rack Units 44U
Racks Mounting Dimensions Height 77.00 in
Racks Mounting Dimensions Width 19.00 in
Racks Mounting Dimensions Min Depth 32.00 in
Racks Mounting Dimensions Max Depth 48.00 in
Racks Rail Type Square Hole with 10-32 Cage Nuts
Racks Rack Type Open Frame Rack
Racks Paint Color RAL9005 Black

Hammond DC4R open frame racks support 19-inch server and network equipment with a 2,000 lb static load rating. The steel frame ships unassembled and includes two pairs of mounting rails, two horizontal cable manager bars and front/rear 10-32 grounding studs.

Adjustable mounting depth from 32 to 48 inches. Outward-facing base feet add approximately 12 inches to overall depth; allow up to 60 inches of floor depth. Square-hole rails include 50 screws and cage nuts.

Side panels are sold individually: DC4R4448 uses DC4R4448SP. Order two panels to cover both sides. Casters, extra rails and other accessories are optional.

Choose depth-adjustable accessories for your installed rail spacing. ADS shelves do not span more than 42 inches; use an appropriate support option when the rack is set deeper. The RRLDCASTER set is rated to 800 lb and the RRHDCASTER set to 2,000 lb. Keep the rack, equipment and accessories within the caster-set rating when casters are installed.
