Home » Hammond DC4RT44 44U 4-Post Rack — 24–36 in, 10-32 Rails
Hammond DC4RT44
Hammond DC4RT44
Hammond MFG

Hammond DC4RT44 44U 4-Post Rack — 24–36 in, 10-32 Rails

In stock
SKU: DC4RT44
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
$1,015.99

Specifications

Product Type Racks & Cabinets
Material Painted Steel
Height 83.13 in
Width 20.50 in
Depth Approx. 48.00 in with feet outward
Mount Type Freestanding
Max Load 2,000 lb static
Racks Rack Units 44U
Racks Mounting Dimensions Height 77.00 in
Racks Mounting Dimensions Width 19.00 in
Racks Mounting Dimensions Min Depth 24.00 in
Racks Mounting Dimensions Max Depth 36.00 in
Racks Rail Type 10-32 Threaded
Racks Rack Type Open Frame Rack
Racks Paint Color RAL9005 Black

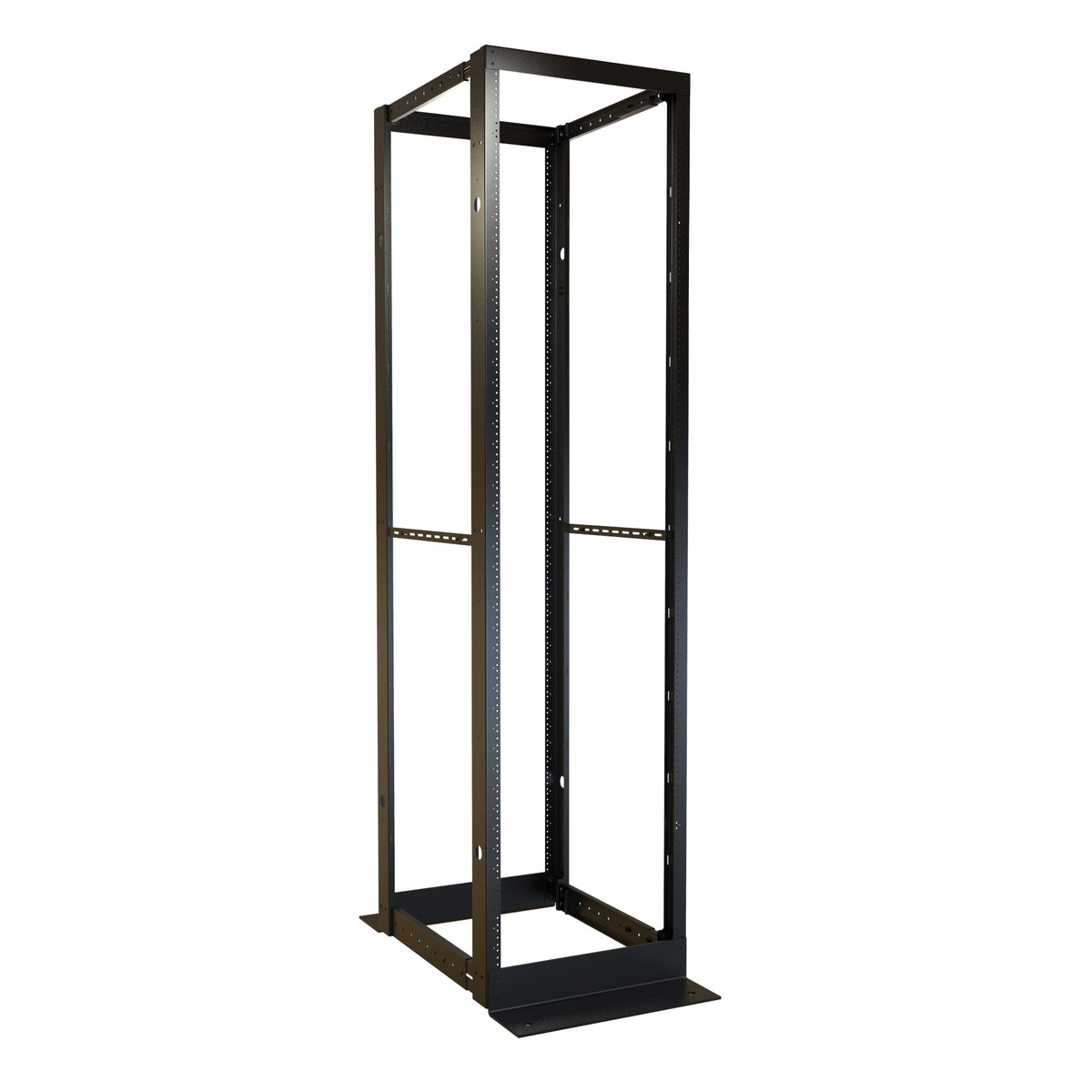

Hammond DC4R open frame racks support 19-inch server and network equipment with a 2,000 lb static load rating. The steel frame ships unassembled and includes two pairs of mounting rails, two horizontal cable manager bars and front/rear 10-32 grounding studs.

Adjustable mounting depth from 24 to 36 inches. Outward-facing base feet add approximately 12 inches to overall depth; allow up to 48 inches of floor depth. Includes 50 screws for the 10-32 threaded rails.

Side panels are sold individually: DC4RT44 uses DC4R4436SP. Order two panels to cover both sides. Casters, extra rails and other accessories are optional.

Choose depth-adjustable accessories for your installed rail spacing. ADS shelves do not span more than 42 inches; use an appropriate support option when the rack is set deeper. The RRLDCASTER set is rated to 800 lb and the RRHDCASTER set to 2,000 lb. Keep the rack, equipment and accessories within the caster-set rating when casters are installed.
