Hammond HWC 30-Inch Cabinet Rail Pairs — Tapped & Square Hole
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$111.99
Couldn't load pickup availability
Specifications
| Product Type | Rack & Cabinet Accessories |
|---|---|
| Material | Painted Steel |

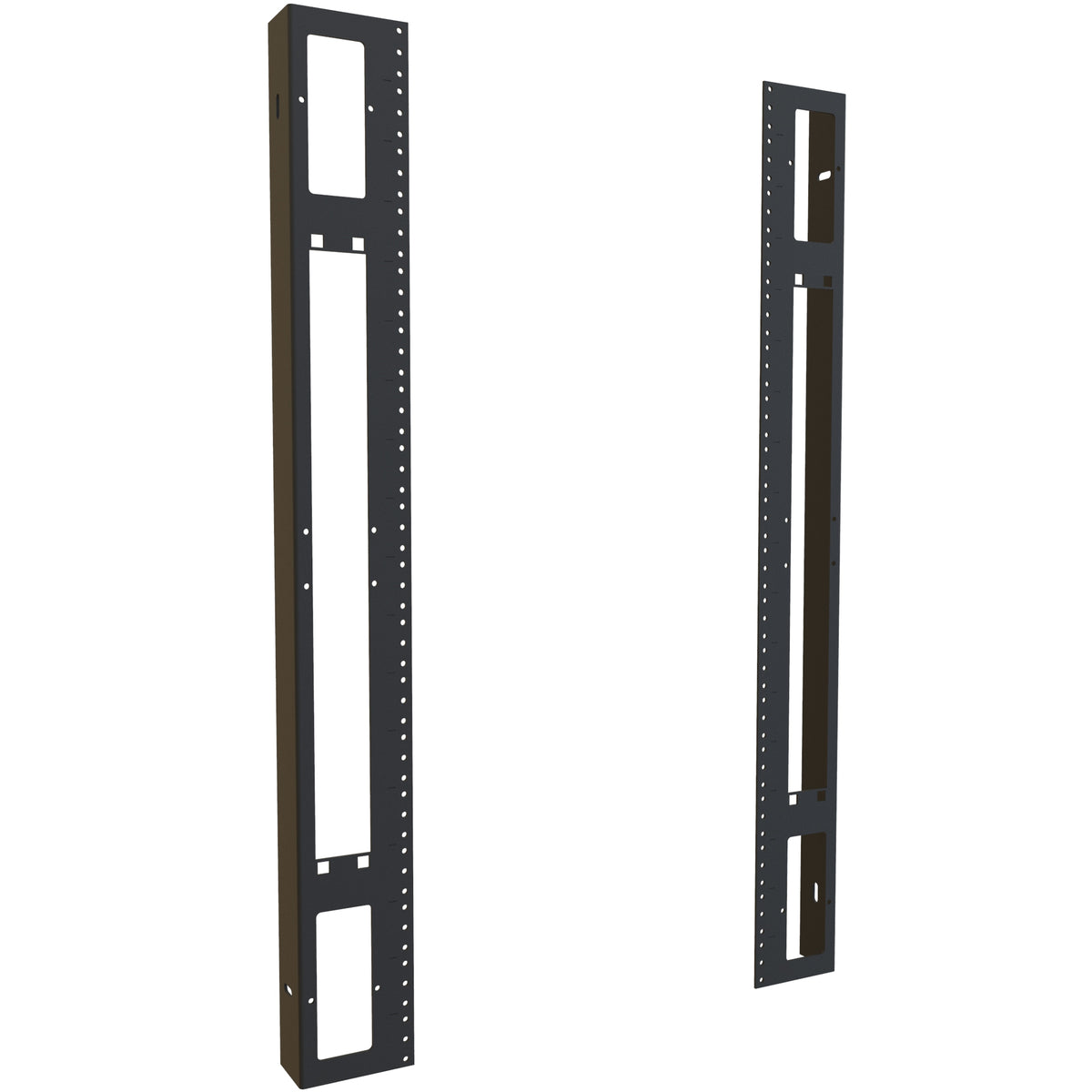

Replacement or additional rack-mount rail pairs for 30-inch nominal-width Hammond HWC cabinets. Choose the matching cabinet height and either tapped 10-32 holes or square holes. Sold as one pair.
| Fits cabinet height | Tapped 10-32 pair | Square-hole pair |
|---|---|---|
| 12U | HWC3012UTR | HWC3012USR |
| 18U | HWC3018UTR | HWC3018USR |
| 27U | HWC3027UTR | HWC3027USR |
Each height fits both 27-inch and 35-inch nominal-depth HWC cabinets of the same height and 30-inch width. These rails are not listed for 24-inch-wide HWC cabinets; those use the corresponding URR pair.
HWC cabinets include one pair of tapped 10-32 rails. Select an additional pair only when needed for your equipment layout or replacement. Square-hole mounting uses compatible cage nuts and screws; verify mounting hardware for your equipment.
