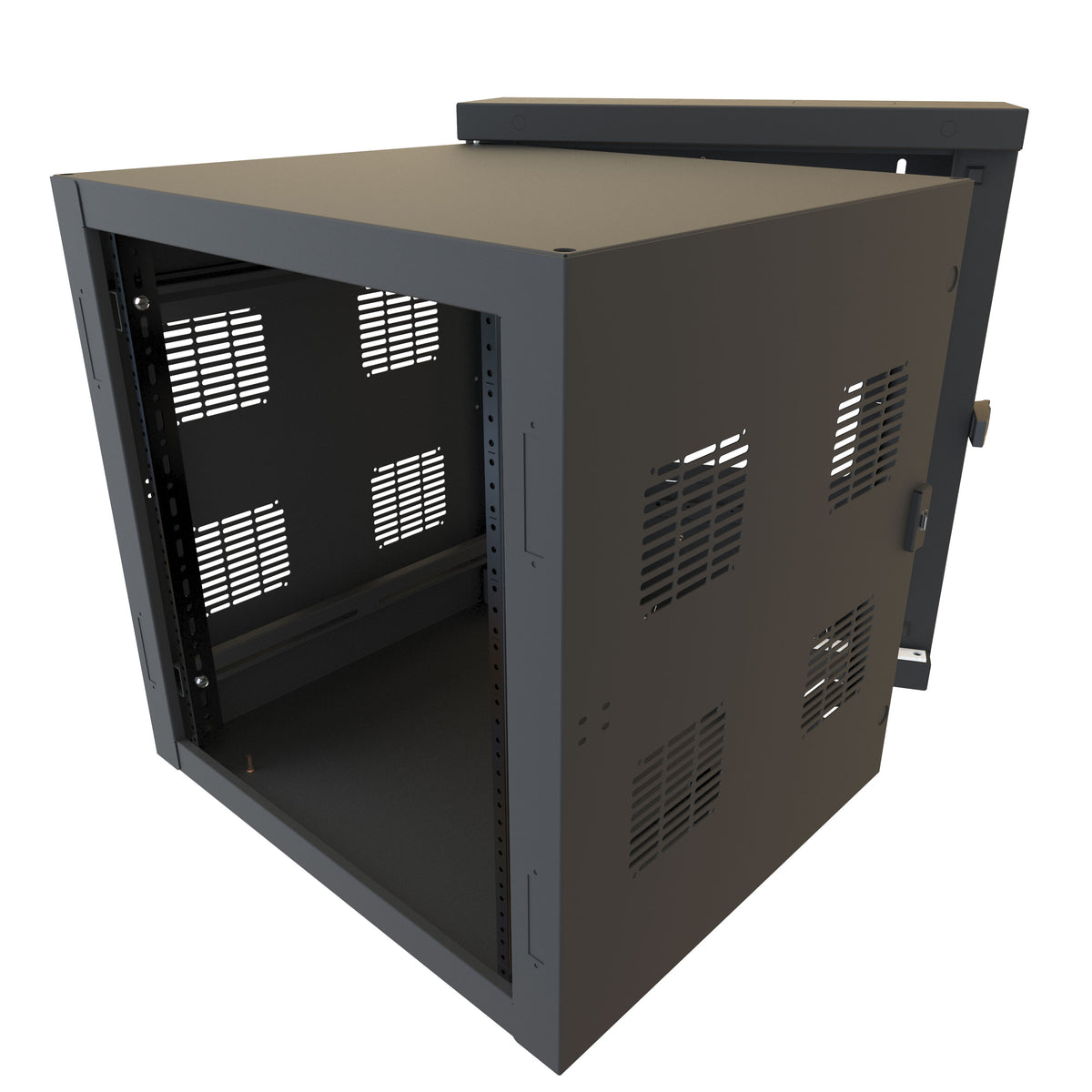

Hammond HWC2412U27BK black 12U swing-out wall-mount rack cabinet with front door sold separately
Hammond HWC2412U27BK black 12U swing-out wall-mount rack cabinet with front door sold separately
Hammond MFG

Hammond HWC Swing-Out Wall-Mount Rack Cabinets - Door Sold Separately

In stock
SKU: HWC2412U27BK
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
$1,419.99
Rack Units
Cabinet Width (Nominal)
Cabinet Depth (Nominal)

Specifications

Product Type Racks & Cabinets
Material Painted Steel
Height 27.81
Width 24.68
Depth 26.78
Mount Type Wall Mount
Max Load 350 lb (UL2416); 200 lb seismic
Racks Rack Units 12U
Racks Mounting Dimensions Height 21.00
Racks Mounting Dimensions Max Depth 24.50
Racks Accessibility Swing-Out
Racks Rail Type Tapped 10-32
Racks Rack Type Enclosed Wall Rack
Racks Paint Color RAL9005 Black

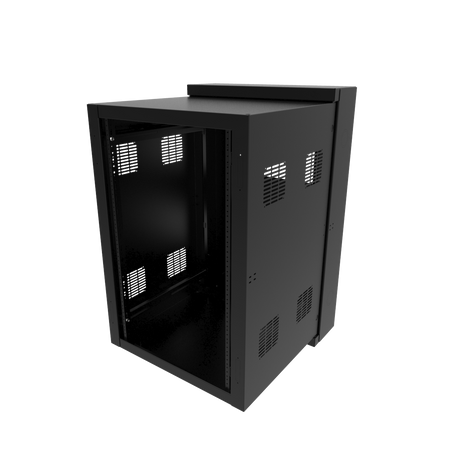

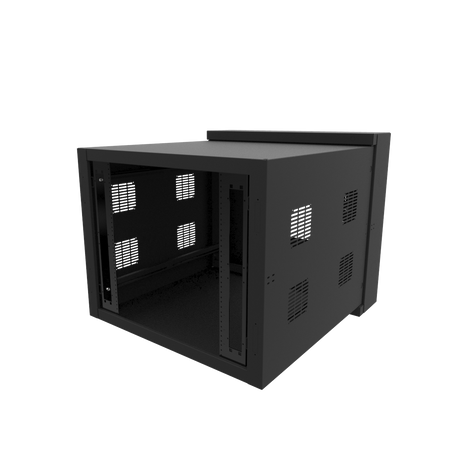

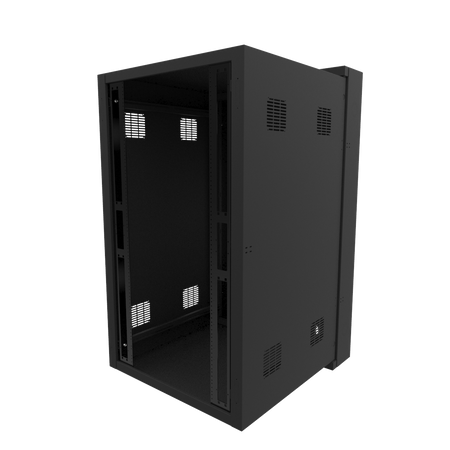

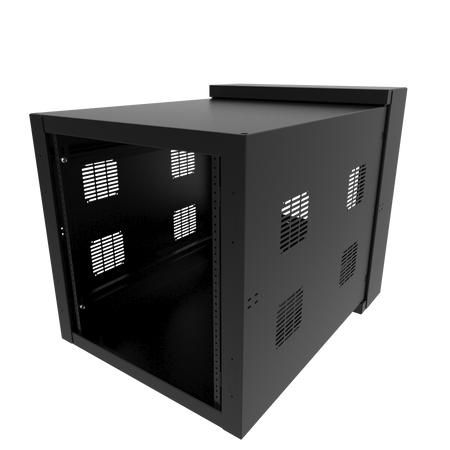

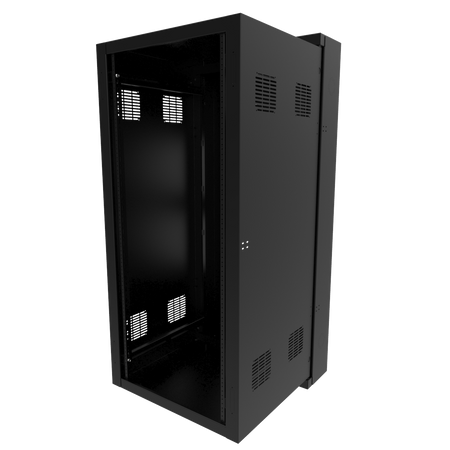

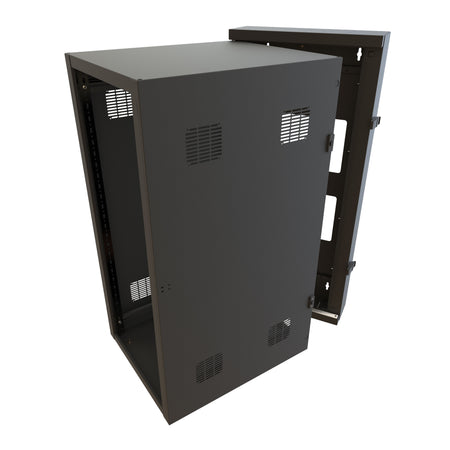

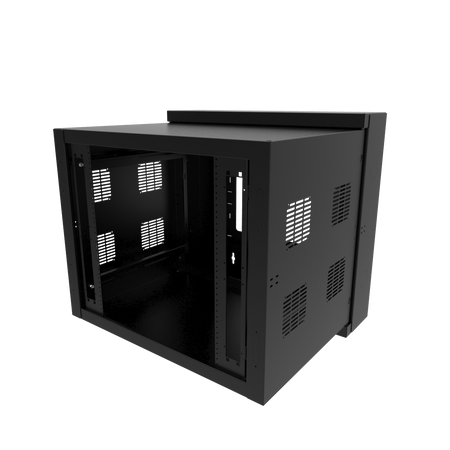

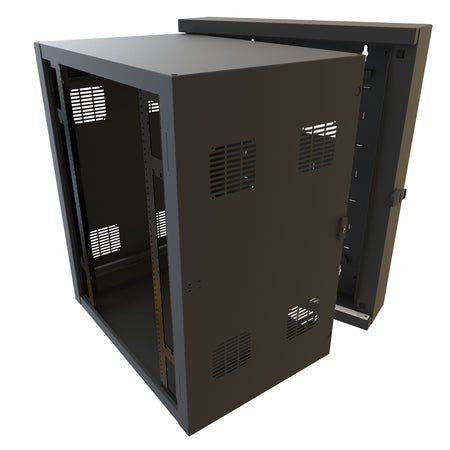

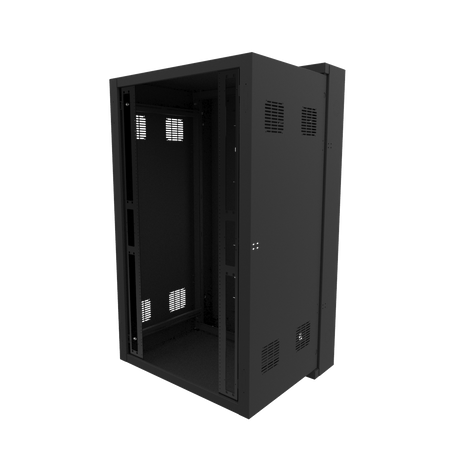

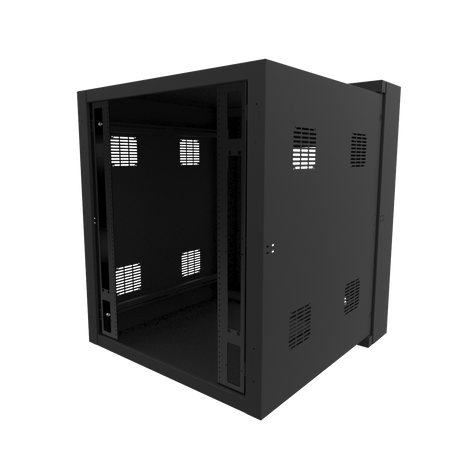

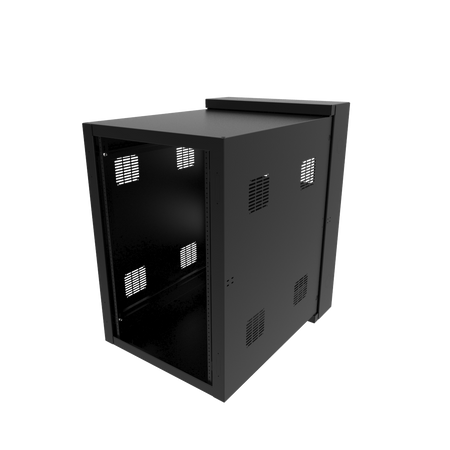

Hammond HWC cabinets mount 19-inch rack equipment on a wall and swing open for rear access. Choose 12U, 18U or 27U, with a nominal width of 24 or 30 inches and a nominal depth of 27 or 35 inches.

Front door sold separately. Match the door to both the rack height and nominal cabinet width. Both cabinet depths use the same matching door.

Included and common specifications

  • Steel cabinet in RAL9005 Black.
  • One pair of adjustable 10-32 tapped mounting rails and a SCREW1032-50 starter screw pack.
  • Load rating: 350 lb under UL2416; 200 lb seismic.

Equipment clearance

The 27-inch-deep cabinet provides up to 24.50 inches of usable equipment depth; the 35-inch-deep cabinet provides up to 32.50 inches. Allow space for cables and connectors so the center section can swing open.

Matching doors — sold separately

Cabinet size Solid Vented Tinted window Filter fan
12U / 24 in wide HWCSD2412UBK HWCVD2412UBK HWCWD2412UBK HWCFD2412UBK
18U / 24 in wide HWCSD2418UBK HWCVD2418UBK HWCWD2418UBK Not listed
27U / 24 in wide HWCSD2427UBK HWCVD2427UBK HWCWD2427UBK Not listed
12U / 30 in wide HWCSD3012UBK HWCVD3012UBK HWCWD3012UBK HWCFD3012UBK
18U / 30 in wide HWCSD3018UBK HWCVD3018UBK HWCWD3018UBK Not listed
27U / 30 in wide HWCSD3027UBK HWCVD3027UBK HWCWD3027UBK Not listed

Each door includes mounting hardware, a snap-latch lock and two keys. Filter fan doors require the separately sold HWCF sealing and filter kit. HWCF is not compatible with vented doors.

Optional rails and inner panels

Cabinet size Tapped 10-32 rails Square-hole rails Inner panel: white steel / unfinished aluminum
12U / 24 in wide URR12U Not listed WRPS12UWH / WRPS12UNF
18U / 24 in wide URR18U Not listed WRPS18UWH / WRPS18UNF
27U / 24 in wide URR27U Not listed WRPS27UWH / WRPS27UNF
12U / 30 in wide HWC3012UTR HWC3012USR Not listed
18U / 30 in wide HWC3018UTR HWC3018USR Not listed
27U / 30 in wide HWC3027UTR HWC3027USR Not listed

Optional rails and panels are sold separately.

Installation

Confirm wall support, anchoring, clearances and grounding/bonding for the installation. Follow the Hammond HWC installation instructions.

Padlock adapter

The optional RPA adapter adds a padlock attachment point to the cabinet clasp latch. Padlock and tamper seal are sold separately.
